KOCOM

DP-KIP-612ML
DP-KIP-620ML

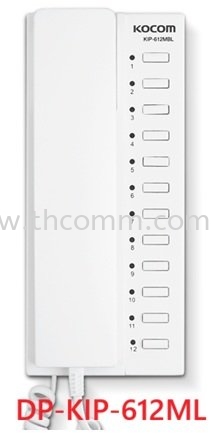

KOCOM DP-KIP612ML

- 12Ch Multiple Interphone

- Master(KIP-612ML) and Slave(KIP-300/DS-2C) system

- Audio communication with Slave unit

- LED indication for channel in use

~ Power : DC24V / 1.2A ( Power from common power supply ).

~ Power Consumption : Max. 70mA.

~ Dimension (mm) : 2 wires ( Non polarity ).

~ Mount type : Surface mount.

~ Assurance temperature : Ø0.65 single cable : 1KM.

~ Box ( WxHxD ) : 92 x 210 x 57mm

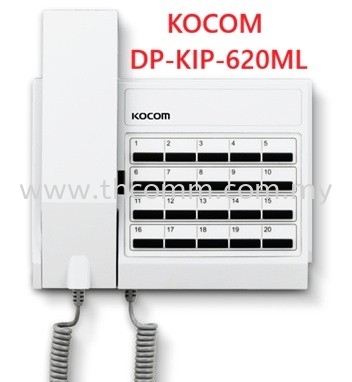

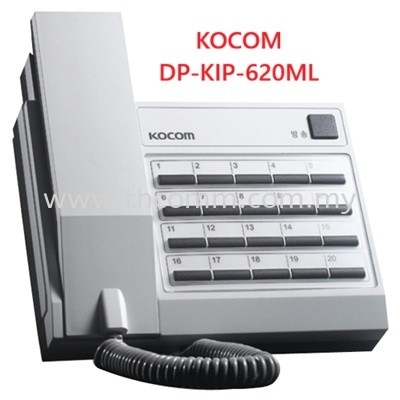

KOCOM DP-KIP-620ML

~ Imput Power : DC24V.

~ Power Consumption : FULL LOAD : 10W.

~ ON STAND BY :1.0W.

~ Call Mode : DUPLEX HANDSET CONVE.

~ Wiring Specification : Terminal Mode.

~ Mount Type : Surface mount & Desktop

~ Dimension: 175 x 175 x 55mm
